Understanding RFID Tags: How They Work, Key Benefits, and Choosing the Right Type

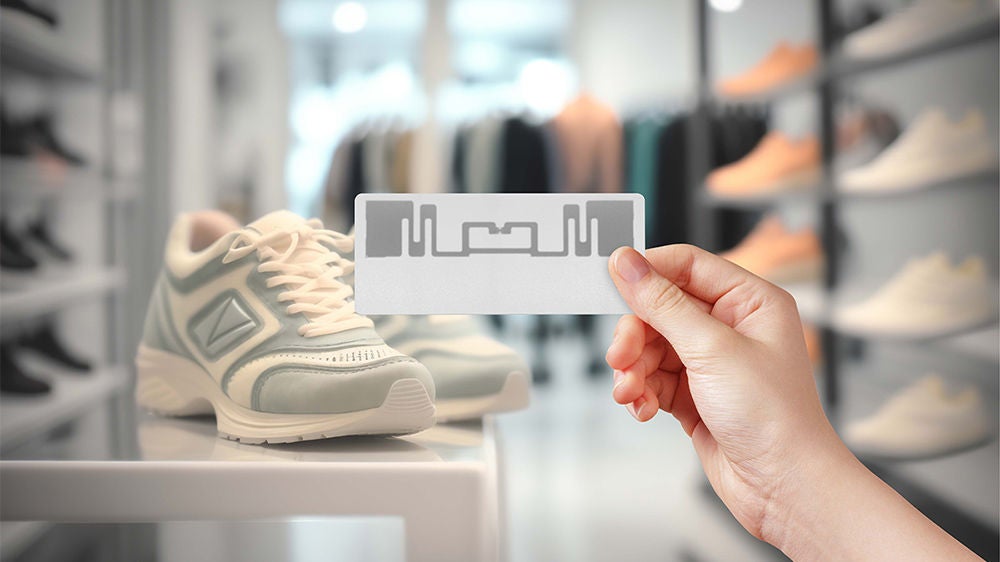

RFID (Radio Frequency Identification) refers to a technology using radio waves to identify and manage objects wirelessly. An RFID tag (also called an IC tag, smart tag, or electronic tag) stores data and is attached to or embedded in items. The system communicates via reader devices that send and receive signals to read that data for tracking, inventory management, access control, and other applications.

• IC chip: stores data.

• Antenna: sends and receives radio waves.

• Protective casing/material: shelters the chip and antenna from environmental damage.

1. A reader emits radio waves toward the tag.

2. The antenna in the tag picks up those waves, powering the chip (if passive) or waking up (if active).

3. The chip sends stored data back via the antenna.

4. The reader receives the data and passes it on to a system (inventory, database, analytics, etc.).

RFID tags offer several capabilities that give them advantages over traditional barcode systems:

• Long-distance readability: Depending on frequency, some RFID tags can be read from several meters away. This allows for reading without line-of-sight.

• Multiple tags read at once: RFID readers can capture many tags simultaneously, which speeds up inventory or verification tasks.

• Ability to read through packaging or under less ideal conditions: Dirt, deformity, or opaque packaging are less of a barrier.

Choosing the right RFID tag depends on its power source, operating frequency, and intended use. Key categories include:

• Passive tags: No internal battery; powered by the reader’s signal. Lighter, smaller, and cheaper.

• Active tags: Contain a battery; can broadcast signals, useful for larger ranges or in contexts like sensors. Larger and more expensive.

• Semi-active (or semi-passive) tags: Normally passive, but use internal power in certain conditions (e.g. when prompted) to improve performance. Useful for environments where reducing false reads or improving signal reliability is needed.

• LF (Low Frequency, ~≤135 kHz): Short read range; more resilient to interference from metals or liquids.

• HF (High Frequency, ~13.56 MHz): Moderate range; commonly used for access cards, NFC, and other applications. Smaller antenna requirements.

• UHF (860-960 MHz): Longer read range; more economical for bulk reading; widely used in inventory and logistics.

• Microwave bands (e.g. 2.45 GHz, etc.): Similar principles to UHF but with more interference risk and shorter useful range.

• Label tags: Sticker-type or paper/plastic labels; cheap and easy to deploy. Best for non-harsh environments.

• Specialized / rugged tags: Designed for durability, heat or chemical resistance, metal mounting, waterproofing, etc. More expensive but essential for harsh or demanding applications.

To maximize the benefits of RFID, consider the following when selecting tags:

• Environment and usage conditions: Is the tag exposed to heat, moisture, chemicals, metal? Will it be outdoors or indoors? Harsh or clean environments?

• Read range requirements: How far does the reader need to be? Is automation or fixed reader needed, or handheld?

• Frequency regulations: Be aware of local regulations on RF frequencies; what is allowed in one region may be restricted in another.

• Form factor and durability: Label tags vs rugged tags; size, thickness, adhesion. Rugged cases may cost more.

• Power needs: Passive, active, or semi-active depending on battery maintenance, life span, signal strength.

Even with many advantages, RFID tags also have drawbacks or challenges that must be managed:

• Higher cost for specialized or durable tags: Rugged tags or active tags cost significantly more than simple label types.

• Interference issues: Metals, liquids, and certain environmental factors can degrade or block radio signals. Tag placement and antenna design matter.

• Standardization and compatibility: Different systems, frequencies, formats (e.g. encoding) may not be interoperable.

• Maintenance and lifecycle: Active tags require battery maintenance; wear and tear on tags can degrade performance.

RFID tags are a powerful tool for organizations seeking better visibility, speed, and reliability in tracking assets, inventory, or products. By understanding how they work, the differences in tag types, and matching the technology to real-world conditions, businesses can achieve significant efficiency gains. Choosing the right tag is essential: assessing environment, durability, cost, and regulatory constraints will determine success.
