A Guide to RFID Tags: Mechanisms, Benefits, and Choosing the Right Type
1. What RFID Tags Are and How They Function
RFID (Radio Frequency Identification) tags are small electronic devices used to store data and communicate with RFID readers via radio waves. These tags are affixed to or embedded in objects for purposes such as asset tracking, inventory management, access control, or logistics. Each tag contains:
- An IC chip that stores data like ID codes, manufacturing or production details.
- An antenna that enables wireless communication between tag and reader.
- A protective casing or form factor designed for durability or situational needs (stickers, rugged housings, etc.).
When an RFID reader transmits a radio signal, passive tags receive energy from the signal to power up, while active or battery-assisted tags may use onboard power. The tag then sends back its data via radio waves, which the reader captures and passes into a management system for processing.
2. Key Advantages of RFID Tags
RFID technology offers several benefits over traditional identification methods like barcodes:
- Non-contact and non-line-of-sight reading: Tags can be read even when hidden, inside packaging or containers.
- Bulk reading capability: Multiple tags can be scanned simultaneously, enabling faster processing in high-volume environments.
- Robust performance: Tags designed for rugged environments can withstand moisture, heat, mechanical stress, or chemical exposure.
- Enhanced tracking visibility: Enables real-time or near-real-time tracking of items in supply chains or production processes.
- Improved efficiency and reduced labor: Less manual scanning reduces time and human errors; improved data accuracy improves decision making.
3. Categories of RFID Tags: Types and Variants
Choosing an RFID tag involves understanding different categories and matching type to use case.
Power Source Types
- Passive tags: No internal power source; powered through the reader’s signal. Cost-effective and suitable for many general applications.
- Active tags: Include internal battery; emit signals or support longer range. Ideal for tracking in large areas or when frequent signaling is needed.
- Battery-assisted / semi-passive tags: Remain mostly passive but use battery for certain tasks (e.g., improved signal strength when activated), balancing cost and performance.
Frequency Bands
| Frequency Band | Key Characteristics |
|---|---|
| Low Frequency (LF, e.g. ~125-134 kHz) | Short read range; relatively unaffected by metals or liquids; useful for animal tagging, proximity detection. |
| High Frequency (HF, 13.56 MHz, including NFC) | Medium read range; common for access control, ticketing, mobile device pairing. |
| Ultra High Frequency (UHF, ~860-960 MHz depending on region) | Long read range; high throughput; suitable for logistics, warehousing, pallet scanning. Note: regulatory restrictions differ by country. |
| Microwave bands (e.g. 2.45 GHz etc.) | Higher data rates; can be more susceptible to interference; used in specialized tagging or sensor networks. |
Form Factor & Material Considerations

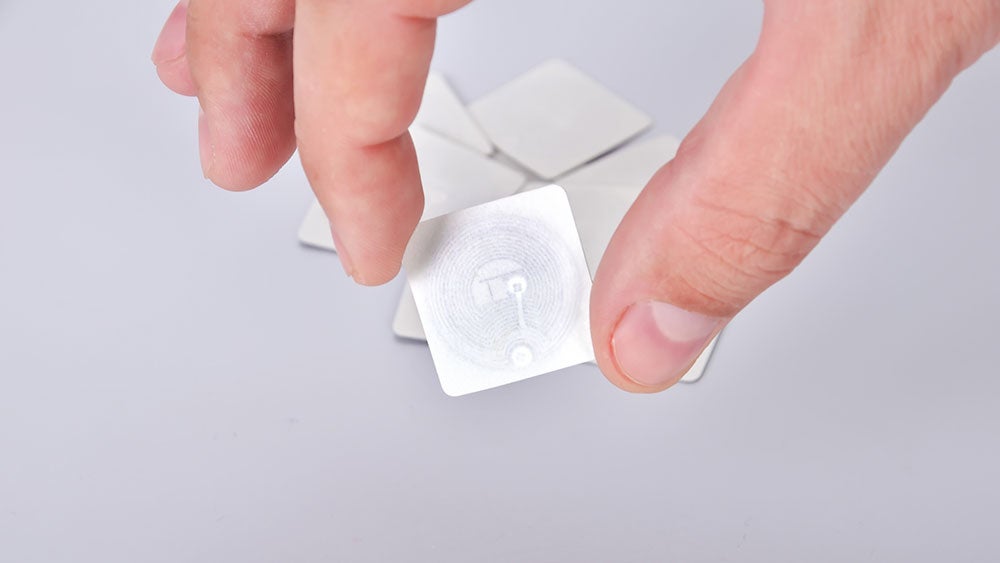

- Label tags / sticker tags: Thin and inexpensive; useful for applications where tag adhesion and environmental exposure are mild.
- Hard/rugged tags: Encased in durable materials; designed for harsh environments (metal surfaces, outdoor exposure, high temperature, chemicals).
- On-metal tags: Specifically engineered to maintain performance when attached to metal surfaces, which typically interfere with signal.
4. Selecting the Right RFID Tag: Practical Factors to Consider
To ensure RFID tag implementation succeeds, evaluate:
- Environmental conditions: Will the tag be exposed to moisture, heat, chemicals, metal surfaces, or extreme weather?
- Read range and reader infrastructure: Are you using handheld readers or fixed readers? What distance must the tag be reliably read from?
- Regulatory compliance: Different regions regulate RFID frequency bands and emission levels; ensure selected tags comply with local laws.
- Durability and lifecycle: Cost differences between simple label tags vs rugged or active tags must be weighed against maintenance, reliability, and longevity.
- Data capacity and encoding: Do you need simple identifiers, or must tags carry additional data (batch, serial, status)? Consider memory size and format.
- Integration with existing systems: Ensure compatibility with inventory management, ERP, WMS, or IoT platforms for smooth data flow.
5. Limitations & Challenges to Manage
Even with their benefits, RFID tags come with trade-offs:
- Higher cost for high-performance or active tags: More robust tags cost more, both upfront and over lifecycle.
- Interference and signal issues: Metal, liquid, or physical obstructions may degrade or block signals; tag placement matters.
- Read reliability: False reads, missed reads; ensuring readers and tags are configured properly is essential.
- Standardization issues: Variability in tag formats, frequency regulations, and data encoding can limit interoperability.
- Maintenance and replacement: Tags in harsh environments may degrade; active tags need battery replacement or charging.
6. Conclusion
RFID tags are a vital technology for organizations aiming to boost visibility, efficiency, and accuracy in tracking assets, inventory, and product lifecycles. By understanding how RFID tags work, the types available, and the environmental and regulatory factors that influence performance, businesses can choose the right tag for their needs and avoid common pitfalls. Well-planned RFID tag deployment can lead to improved operations, better data, and stronger supply chain control.
