TH208

Assembly

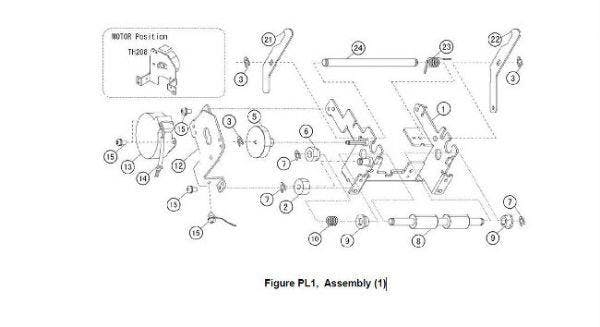

View_1

Arrow Icon
View 913
Item Number Part Number Part Description
1 R12491000 MAIN PLATE SET
2 P28249000 IDLE GEAR
3 ND0020030 E SNAP RING
5 P28268000 GEAR (8)
6 P28254000 Dispense Roller Gear
7 ND0040022 E SNAP RING
8 P28596000 DISPENSE ROLLER
9 PT2500100 BEAR FIGHT (BUSHING)
10 PC2500302 SPRING
12 P28175000 Motor Plate
13 K00272001 Stepping Motor-LF
14 JG100011A Tie wrap
15 MD3200622 PAN HEAD SCREW+SW+WS
21 P28196010 Latch Handle L
22 R12495010 Latch Handle R Set
23 P28516000 Open Lever Spring
24 P28155020 Shaft (Latch Handle)

View_2

Arrow Icon
View 914
Item Number Part Number Part Description
20 MH0300822 PAN HEAD SCREW, P-TIGHT
27 R14591020 BOTTOM FRAME A (COAT)
29 Q02566000 ROUTE STICKER (ITN)
30 R15845000 IM SENSOR COVER (COAT)
31 MH0300622 P TIGHT SCREW
32 P30880000 LABEL SUPPORT SHAFT
33 ND0015030 E-Sanp Ring E-1.5
34 MA0300822 SCREW
35 PE3520600 Dispense Roller
37 R14593010 LABEL GUIDE R (COAT)
38 PJ0A20500 Gear (label guide)
39 P28181010 LABEL GUIDE SHAFT
40 P21801000 O-RING
41 MH9300822 P-TIGHT SCREW
51 P28195030 BOTTOM FRAME C
77 P30863001 CABLE COVER
128 R13683000 IM+GAP PCB SET-LF
138 R13693000 IM+GAP CABLE ASSY-LF

View_3

Arrow Icon
View 915
Item Number Part Number Part Description
15 MD3200622 PAN HEAD SCREW+SW+WS
20 MH0300822 PAN HEAD SCREW, P-TIGHT
45 P30868020 BOTTOM FRAME B
46 P28171000 BATTERY SPRING
47 P30879001 BATTERY SUPPORT SPRING
48 F00407000 PHOTO INTERRUPTER -LF
62 P30872010 CONNECTOR PANEL A - USB + LAN
63 P30872110 CONNECTOR PANEL B - WLAN
64 P30872210 CONNECTOR PANEL C - USB
137 R13692001 MODE CABLE ASSY-LF

View_4

Arrow Icon
View 916
Item Number Part Number Part Description
3 ND0020030 E SNAP RING
20 MH0300822 PAN HEAD SCREW, P-TIGHT
31 MH0300622 P TIGHT SCREW
48 F00407000 PHOTO INTERRUPTER -LF
82 R15154010 TOP COVER(SILK)ITN
84 Q02477000 KEY PAD(ITN)
85 P30853000 HINGE(LCD)
86 P28149010 HINGE PLATE(COVER)
88 M16256000 PAN HEAD SCREW
90 R13636070 TOP FRAME SET
91 P28196010 Latch Handle L
93 P28156010 HEAD SPRING
94 P30851011 HEAD SPRING COVER
99 HJ100201A Ferrite core
102 P30854030 LCD TOP CASE
103 R14739030 LCD COVER
104 P28154010 LCD CUSHION
105 P30855030 LCD BOTTOM CASE
106 P30857010 HINGE PLATE(LCD)
107 P28518000 LCD SHAFT
108 MA0200822 Pan head screw
125 R13679000 KEY PCB SET-LF
126 R13680000 LCD SUB ASSY-LF
129 R13684000 GAP PCB SET-LF
133 R13686000 TOP CABLE ASSY-LF

View_5

Arrow Icon
View 917
Item Number Part Number Part Description
17 P30875001 BATTERY STOPPER HOLDER
18 P30876001 BATTERY STOPPER
19 P28514001 BATTERY STOPPER SPRING
20 MH0300822 PAN HEAD SCREW, P-TIGHT
26 P30871020 OPEN BUTTON
42 F00177000 PHOTO INTERRUPTER -LF
66 P30877001 HOUSING(CLUTCH)
67 P11471000 CLUTCH
69 P28157010 HINGE SHAFT L
70 P10301030 SPRING (HINGE)
71 P28170010 HINGE SHAFT R
72 P28515010 SPRING(DAMPER)
73 ND0070022 E-Snap Ring
74 MA0300622 Screw
99 HJ100201A Ferrite core
123 R13677003 MAIN PCB USB OR WLAN TH208
124 R13678010 MAIN PCB USB + LAN TH208
127 R13682000 CHG PCB SET-LF
130 R14848000 WLAN ASSY-LF
131 R13695010 WLAN CABLE ASSY-LF
132 KA200541A FERRITE CORE
134 R13689000 BATTERY CABLE ASSY-LF
135 R13690000 COVER CABLE ASSY-LF
145 K00294010 AC ADAPTOR 100V - 220V AUTO-SWITCHING
146 JH000451A Power cord, 220V
158 K00295000 COIN TYPE LI BATTERY-LF

View_6

Arrow Icon
View 918
Item Number Part Number Part Description
3 ND0020030 E SNAP RING
20 MH0300822 PAN HEAD SCREW, P-TIGHT
31 MH0300622 P TIGHT SCREW
52 P28192040 DISPENSE FRAME
53 P34676001 DISPENSE SHEET
54 R12493000 DISPENSE BR SET
56 PC1500200 SPRING(PRESSURE)
57 P08132000 SILICONE ROLLER
58 P29414000 SHAFT(PRESSURE)
60 P30866001 PAPER GUIDE
61 MA0300422 PAN HEAD SCREW
75 P30862020 GEAR COVER
79 R13531030 PLATEN ROLLER SAB TH208
97 P30852020 DIS SENSOR COVER
100 R14565030 PRINT HEAD (8 DPMM) HT208
110 R13527020 BOTTOM COVER SET
111 P27811000 RUBBER FOOT
112 P30860030 BATTERY COVER
113 R15919000 IC COVER SET
114 P34202020 SCANNER CONECTOR COVER
116 P28272020 FRONT COVER
118 P30864011 HANDLE
119 P28517010 HANDLE PIN
