M5900RVe

Discontinued - LIMITED PARTS AVAILABILITY

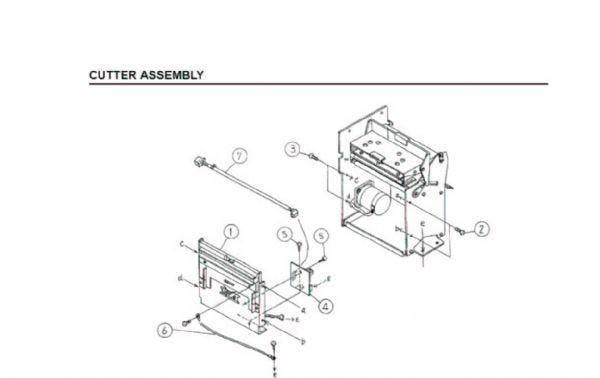

Cutter Assembly

View_1

Arrow Icon
View 320
Item Number Part Number Part Description
1 PR7522100 Cutter Set
2 MD4300621 PAN HEAD SCREW+SW+WL
3 MD4300821 Pan Head Screw
4 RJ4520100 PCBA Cutter
6 RH1683400 Centoro FG Line Sub
7 RH1522600 Cable assy

Dispenser Assembly

View_1

Arrow Icon
View 321
Item Number Part Number Part Description
1 PA3523100 Dispense bracket
2 PT9690500 TCV cap
3 PB0521300 Pressure guide (A)
4 PB0521500 Dispense bracket shaft
5 ND0060030 E SNAP RING
6 PB5550100 Adjust nut
7 MD4300821 Pan Head Screw
8 PB0521600 Dispense roller shaft
9 PE3520600 Dispense Roller
10 ND0020030 E SNAP RING
11 PR1520200 Pressure Roller Sub Assy
12 PB0521800 Pressure roller shaft
13 ND0040022 E SNAP RING
22 PA2520800 Dispense bar
23 MD4300621 PAN HEAD SCREW+SW+WL
24 PB0521400 Pressure guide (B)
26 PC2520300 Pressure spring
29 PB0522401 Shaft (Rewind)
30 PA0520300 Rewind Plate
31 PA1520500 Tension Plate
32 PE2520500 Guide Collar
33 PC1520400 Spring (Rewind)
34 PA0770100 Frange
35 PJ4770100 Facing (9x26x2)
36 PE8770400 Pulley (50)
37 PE7770100 Frange (8x26)
39 PA3525300 Rewind Frame
40 PT1112080 BALL SUPPORTER
41 PT8134064 Timing Belt
44 MA0300621 Pan head screw
46 PE4770200 REWIND BOSS FOR CL408/408e
47 PE1520700 Handle
48 MD4301221 Pan Head Screw
49 MD4401021 PAN HEAD SCREW+SW+WL
51 MH4300821 PAN HEAD SCREW

View_2

Arrow Icon
View 322
Item Number Part Number Part Description
15 PA3523200 Dispense sensor bracket
16 PE1570300 Demand Sensor Bracket
17 MH0250621 P-Tight Screw
18 RH1522900 Dispense Sensor
19 MH4300821 PAN HEAD SCREW
54 PA3525401 Tension Bracket
55 PA3525500 Plate Nut
56 PE3720100 TENSION ROLLER
57 PB2720600 Collar
58 MD4401621 Pan Head Screw

Frame Assembly with Drive Train

View_1

Arrow Icon
View 1101
Item Number Part Number Part Description
1 PA2520600 Side frame (A)
2 PB2520200 Collar (A)
3 MA0401021 Pan head screw
4 PV9720200 Bush
8 PA3522500 Frame bracket
9 MH4300821 PAN HEAD SCREW
14 PA3523700 Cover
15 MH4300621 S-Tight Screw
27 PE1520300 Label guide shaft
28 MH0300821 PAN HEAD P TIGHT SCREW
31 PR7520100 Stepping motor sub
32 PR7520200 Motor pulley set
33 PT8122064 Timing belt
36 MD4401421 Pan head screw
37 PA1190000 Plate Nut
41 RH1721200 Head Open SW Cord
42 MD3201221 Pan Head Screw
47 MD4300821 Pan Head Screw

View_2

Arrow Icon
View 1102
Item Number Part Number Part Description
PR1520300 PLATEN ROLLER- INCLUDES PARTS A,B,C,D
5 PA2520700 Side frame (B)
6 PB2520200 Collar (A)
7 MA0401021 Pan head screw
9 MH4300821 PAN HEAD SCREW
11 PA3522600 Paper guide
13 PE1570801 Sensor cover
15 MH4300621 S-Tight Screw
16 PE3520400 Roller (A)
17 PE3520500 Roller (B)
18 MA0301022 Pan Head Screw
21 PE2520300 Collar (A)
22 PC1520200 Roller spring
23 PE3520101 Roller (A)
24 PM6401200 Bushing
25 PT9540000 Spacer ( C )
26 MH0300822 PAN HEAD SCREW, P-TIGHT
34 PA3522700 Sensor bracket
35 MD4300621 PAN HEAD SCREW+SW+WL
40 RJ3520000 Label Sensor, Lower
45 PA1680200 Ball Supporter Clamp
47 MD4300821 Pan Head Screw

Housing and Electronics Assemblies

View_1

Arrow Icon
View 324
Item Number Part Number Part Description
1 P00893000 BASE ASSEMBLY - must be ordered from the factory - not stocked in the USA
2 P00796000 FOOT FOR M5900RVe - must be ordered from factory not stocked in USA
3 P00319010 CENTER FRAME - must be ordered from factory - not stocked in USA
4 MH4300821 PAN HEAD SCREW
5 PH1523300 FRONT PLATE
7 PV9520300 BUSH
8 P00316010 Rear Cover - not stocked - must be ordered from factory
9 MD4300621 PAN HEAD SCREW+SW+WL
11 PE6771001 MEMORY CARD
12 PB5A20001 THUMB SCREW, KNURLED
13 PV2760100 Rubber foot
16 PA3524000 LABEL SUPPLY BRACKET
17 PE1720300 Label Stopper
17 PA4520300 STOPPER SPRING
18 NA1003022 PLAIN WASHER
19 MH0300821 PAN HEAD P TIGHT SCREW
23 PE1520600 Rewind shaft bracket
25 PE2520101 Spacer
26 MA0401621 Pan head screw
27 P00321000 PCB Bracket - must be ordered from factory not stocked in USA

View_2

Arrow Icon
View 1105
Item Number Part Number Part Description
11 PE6771001 MEMORY CARD
12 PB5A20001 THUMB SCREW, KNURLED
27 P00321000 PCB Bracket - must be ordered from factory not stocked in USA
28 MD4300621 PAN HEAD SCREW+SW+WL
31 KA500631A POWER SUPPLY BOARD, 110 VOLT
32 HD100321A Fuse (250V 3.15A)
36 MD4300821 Pan Head Screw
37 RH1775100 CABLE ASSY, PRINT HEAD
39 Label Not sold separately
40 PH0520700 Front Cover (7)
41 MH0300821 PAN HEAD P TIGHT SCREW
42 PH0520800 Dip Switch Cover
43 PH2520700 Panel
44 PE1520800 Button
46 P00532000 FRONT COVER
48 PH1523500 Cover (RH)
50 P00317000 COVER (LH) Factory order - not in stock
55 RH1745700 LCD & Cable Assy
56 RJ2522020 PANEL BOARD
57 RH1770500 KB cable set

View_3

Arrow Icon
View 1106
Item Number Part Number Part Description
62 R00459000 MAIN PCBA M5900RVe
63 CJ058651A EEPROM
64 RJ7770200 Memory PCB Assy-B Standard 2MB Memory
65 PA3739900 CONNECTOR LOCK
66 PC9730100 SPRING(LOCK)
67 CV617431A REAL-TIME CLOCK
68 MD4300621 PAN HEAD SCREW+SW+WL
69 WWCL45900 Memory PCB (4 MB Memory Option) CL4XXe, CL6XXe, M5900RVe
80 RJ4770100 PCMCIA MEMORY OPTION (NO PCMCIA CARD)

Print Assembly

View_1

Arrow Icon
View 1107
Item Number Part Number Part Description
1 PA3522800 Head bracket
3 PA2520300 Head adjust plate
4 MP7300522 Hex Bolt
5 PA3525200 Tear Off Bar
6 QC6521400 Sticker
7 P00273000 Print head 5900,5900RV,5900RVe replaces GH000421A
9 Label Not sold separately
14 MD4300821 Pan Head Screw
16 R00437000 PRINT HEAD CABLE
20 PA3523300 Sensor bracket
21 PE1631200 Sensor arm
22 MD4300621 PAN HEAD SCREW+SW+WL
23 MH0250621 P-Tight Screw
24 JG100011A Tie wrap
25 RH1522200 Label Sensor, Upper
26 PA4520200 Paper pressure

View_2

Arrow Icon
View 1109
Item Number Part Number Part Description
2 PC1520100 Head spring
31 PA3523000 Head push bracket
32 PB0520800 Head shaft
33 MA1300422 Flat Screw
34 MH4300821 PAN HEAD SCREW
35 NA1003022 PLAIN WASHER
36 ND0070030 E-snap Ring
37 PA3523400 LATCH LEVER
38 PC2520100 Spring (A)
39 PC2520201 Spring (B)
41 PB2520200 Collar (A)
42 PB2520300 Collar (B)
43 MJ9401021 Thin head screw
44 PA2521000 Adjust plate
45 PB5550100 Adjust nut
46 MD4300821 Pan Head Screw
46 MD4300621 PAN HEAD SCREW+SW+WL
48 PE1520100 Lever guard
