CG408/CG412

Attachment Assembly

View_1

Arrow Icon

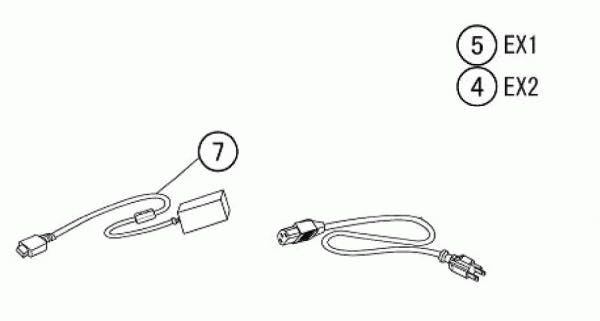

View 21 180420 180210
Item Number Part Number Part Description
4 JH000441A Power cord, 110V
5 JH000451A Power cord, 220V
7 K00416000 AC ADAPTER-LF SATO LOGO 100V - 220V auto switching

Bottom Assembly

View_1

Arrow Icon
View 22 180420 180211
Item Number Part Number Part Description
9 MH0300822 PAN HEAD SCREW, P-TIGHT
10 M16429000 BIND HEAD P TIGHT SCREW
11 MH9300822 P-TIGHT SCREW
43 R16570010 BOTTOM FRAME SA - DT MODEL
44 P32670011 LABEL GUIDE LEFT
45 P32671011 GUIDE COVER - LEFT
46 P32672002 SENSOR COVER - TT MODEL
47 P32673012 LABEL GUIDE RIGHT
48 P32674000 SHAFT ( LABEL GUIDE)
71 PJ0A20500 Gear (label guide)
78 Q02578000 STICKER (LABEL ROUTE)
81 Q02589000 STICKER CAUTION
86 R13004000 IM & GAP PCB SET - LEFT
87 R13005000 GAP PCB SET - LEFT
91 R14265010 SENSOR CABLE SET ( DT MODEL) LEFT
101 R15050010 SENSOR CABLE SET ( TT MODEL ) LEFT
110 R14466020 BOTTOM FRAME SET - TT MODEL
111 R16522001 SENSOR COVER SET - DT MODEL

View_2

Arrow Icon
View 23 180420 180213
Item Number Part Number Part Description
6 K00292000 STEPPING MOTOR
8 MD4300822 PAN HEAD SCREW+SW+WL
14 P27072000 SPACER
15 P27073000 DOUBLE GEAR
16 P27074000 GEAR (Z40)
49 P32675000 MOTOR BRACKET
50 P32676011 GEAR BOX

View_3

Arrow Icon
View 24 180420 180214
Item Number Part Number Part Description
9 MH0300822 PAN HEAD SCREW, P-TIGHT
88 R13514000 COVER SENSOR PCB
112 H02056000 CABLE CLAMP

View_4

Arrow Icon
View 25 180420 180215
Item Number Part Number Part Description
9 MH0300822 PAN HEAD SCREW, P-TIGHT
28 P31363000 WASHER (D3.3*d9*T0.8
52 P32680011 REAR I/F PANEL RS232C
53 P32680111 REAR I/F PANEL LAN
54 P32680211 REAR I/F PANEL 1EEE1284
55 P32683011 BOTTOM COVER
56 P32684000 RUBBER FOOT
57 P32685011 FRONT PANEL (STD)
85 R12999000 DC POWER CABLE SA-LF
95 R14471010 PLATEN ROLLER CG4XXTT / DT
97 R14481011 PRINT HEAD ( 8 DPMM - 203 DPI) CG408DT
98 R14482011 PRINT HEAD ( 12 DPMM - 305 DPI) CG412DT
102 R15396002 MAIN PCB (RS232C) C4XXTT/DT
103 R15397002 MAIN PCB ( IEEE1284) CG4XXTT/DT
104 R15398002 MAIN PCB (LAN) CG4XXTT/DT
116 MH2301022 BIND HEAD P TIGHT SCREW

View_5

Arrow Icon
View 26 180420 180217
Item Number Part Number Part Description
9 MH0300822 PAN HEAD SCREW, P-TIGHT
28 P31363000 WASHER (D3.3*d9*T0.8
42 P32666011 R ADJUST PLATE
52 P32680011 REAR I/F PANEL RS232C
53 P32680111 REAR I/F PANEL LAN
54 P32680211 REAR I/F PANEL 1EEE1284
55 P32683011 BOTTOM COVER
56 P32684000 RUBBER FOOT
57 P32685011 FRONT PANEL (STD)
65 P32697010 SPRING (HEAD)
67 P32825002 WINDOW
85 R12999000 DC POWER CABLE SA-LF
93 R14464020 PRINT HEAD ( 8 DPMM - 203 DPI) CG408TT
94 R14465020 PRINT HEAD ( 12 DPMM - 305 DPI) CG412TT
95 R14471010 PLATEN ROLLER CG4XXTT / DT
102 R15396002 MAIN PCB (RS232C) C4XXTT/DT
104 R15398002 MAIN PCB (LAN) CG4XXTT/DT
116 MH2301022 BIND HEAD P TIGHT SCREW

Ribbon Frame Assembly

View_1

Arrow Icon
View 27 180420 180218
Item Number Part Number Part Description
3 JG100011A Tie wrap
9 MH0300822 PAN HEAD SCREW, P-TIGHT
11 MH9300822 P-TIGHT SCREW
17 P27101010 CORE GUIDE
18 P27105010 TQ.LIMITER PLATE A(R)
19 P27106000 TQ.LIMITER PLATE B(R)
20 P27108000 TQ.LIMITER PLATE A (U)
21 P27109000 TQ.LIMITER PLATE B (U)
22 927111010 TORSION SPRING
23 P27112000 FELT PLATE
24 P27113000 ENCODER
25 P30662000 TQ.LIMITER WASHER
26 P30663000 SHAFT (ENCODER)
27 P31066000 CLUTCH - GEAR
28 P31363000 WASHER (D3.3*d9*T0.8
32 P32652080 RIBBON FRAME
33 P32653010 RIBBON BUSH(U)
34 P32654010 RIBBON BRUSH
37 P32659010 CORE GUIDE BUSH
38 P36056000 SPRING (CORE GUIDE)
39 P32662011 GEAR COVER
40 P32663000 GEAR ( IDLE)
41 P32664020 HEAD RELEASE LEVER TT
51 P32678011 BOTTOM FRAME HINGE
66 P32814000 SPRING (GEAR STOPPER)
68 P32829010 GEAR STOPPER
69 P32888000 TQ.SPRING (R)
70 P33423010 TQ.SPRING (U)
74 Q02348000 STICKER HEAT CAUTION
81 Q02589000 STICKER CAUTION
89 R16253000 Ribbon Sensor PCB -SET
99 R15041000 HEAD CABLE SET(TT)-LF
114 P36625000 SPRING (CORE GUIDE U)
115 MH0301221 Screw

View_2

Arrow Icon
View 28 180420 180219
Item Number Part Number Part Description
9 MH0300822 PAN HEAD SCREW, P-TIGHT
35 P32656011 SWING STOPPER (TT)
36 P32657012 RIBBON COVER
80 Q02580000 STICKER (RIBBON ROUTE)

Top Cover Assembly

View_1

Arrow Icon
View 29 180420 180220
Item Number Part Number Part Description
9 MH0300822 PAN HEAD SCREW, P-TIGHT
58 P32686020 TOP COVER (DT)
59 P32688011 BUTTON (DT)
61 P32693001 SPRING (OPEN LEVER)
79 Q02579000 OPERATION SHEET
84 R12991000 KB PCB SET-LF
90 R14263010 KB CABLE SET (DT)-LF
96 R14480021 OPEN LEVER SET (DT)

View_2

Arrow Icon
View 30 180420 180221
Item Number Part Number Part Description
9 MH0300822 PAN HEAD SCREW, P-TIGHT
29 P32644021 TOP COVER (TT)
30 P32648001 TOP COVER HINGE
31 P32649011 BUTTON (TT)
61 P32693001 SPRING (OPEN LEVER)
79 Q02579000 OPERATION SHEET
84 R12991000 KB PCB SET-LF
92 R14461012 OPEN LEVER SET (TT)
100 R15048000 KB CABLE SET(TT)-LF

View_3

Arrow Icon
View 31 180420 180222
Item Number Part Number Part Description
9 MH0300822 PAN HEAD SCREW, P-TIGHT
51 P32678011 BOTTOM FRAME HINGE
60 P32690001 WINDOW (DT)
62 P32694020 TOP FRAME
63 P32695011 SWING STOPPER (DT)
64 P32696010 HEAD RELEASE LEVER (DT)
65 P32697010 SPRING (HEAD)
74 Q02348000 STICKER HEAT CAUTION
83 R12875010 HEAD CABLE SET (DT)-LF
113 J00056000 SPIRAL TUBE (25)
